Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Grade: 6000 Series
  • Shape: Round
  • Surface Treatment: Mill Finished
  • Outer Diameter: 60mm
  • Length: as required
  • Thickness: 0.8mm
  • Usage: TV Stand,Scaffolding,Chair,Tent,Railing Handrail
  • Hardness: above 8HW
  • Alloy Or Not: Is Alloy
  • Temper: T3 - T8
  • Al (Min): 98.5%
  • Wall Thickness: 0.8mm
  • Model Number: E003
  • Brand Name: Lutong
  • Weight: 0.404kg/m
  • Other dimension 1: 8mm,10mm,12mm,13mm,15mm,16mm,18mm,19mm,20mm,22mm
  • Other dimension 2: 24mm,25mm,26mm,27mm,28mm,29mm,30mm,36mm,40mm,50mm
  • Other shapes: Square,Rectangular,Oval,Triangle,Hexagonal,Octagonal

Packaging & Delivery

Packaging Details inner plastic paper interleaving each tubing,outer fixed and protected by plywood or pallets;usually 12 tons for a 20 feet contaner,24 tons for a 40 feet container.
Delivery Time 10-12 days from order confirmation

We support Trade Assurance:



What is Trade Assurance?

Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipmen









1.Details

Material

6063,6061,6005,6060

Temper

T4,T5,T6

Surface treatment

Mill Finish,Anodized,Powder Coated,Wooden Finish,Polish

Color

Silver,Black,White,Blue,Red,Green,and many other colors can be available

Length

as required

Deep Process

cutting,drilling,punching,milling,deburrin,clearing,etc

Package

inner plastic paper interleaving each tubing,outer fixed by plywood or pallets, or as required

Payment terms

 TT or LC at sight

Delivery time

10-12 days after order confirmation

Certification

ISO 9001:2008;ISO14001:2004;SGS

2.Standard Tubing Dimension

Round Tubing Outer Diameter

8mm,10mm,12mm,13mm,15mm,16mm,19mm,22mm,23mm,25mm,26mm,27mm,28mm,29mm,40mm,50mm,60mm,100mm,etc

Square Tubing Dimension

8x8mm,12x12mm,20x20mm,25x25mm,50x50mm,etc

Rectangular Tubing Dimension

18x12mm,30x20mm,40x20mm,40x30mm,45x20mm,60x30mm,70x40mm,etc

3.Primary Technical Data

1)Chemical composition

   Alloy

     Si

   Fe

Cu

      Mn

Mg

Cr

     Zn

        Ti

  Impurity

     Al

   6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.70

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.4-0.6

0.1

0.1

0.1

0.15

Rest

 6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

0.15

0.1

0.15

 Rest

2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

3)Anodized

Grade

Anodizing thickness

Hole scaling quality of oxide layer

Average thickness

Local thickness

P. Cr acid-erosion weight less method

AA10

≥10um

≥8um

≤30 mg/d m2

AA15

≥15um

≥12um

4)Powder coating & wooden-grained

Coating thickness

Coating impress rigidity

Adhesive force of coating layer

40-120um

Indentation hardness>80

0 grade

4.Our advantages

1)Engineering design and support.

2)High Quality system, strictly inspection during production and whole inspection before package.

3)Good performance, product warranty for 25 years.

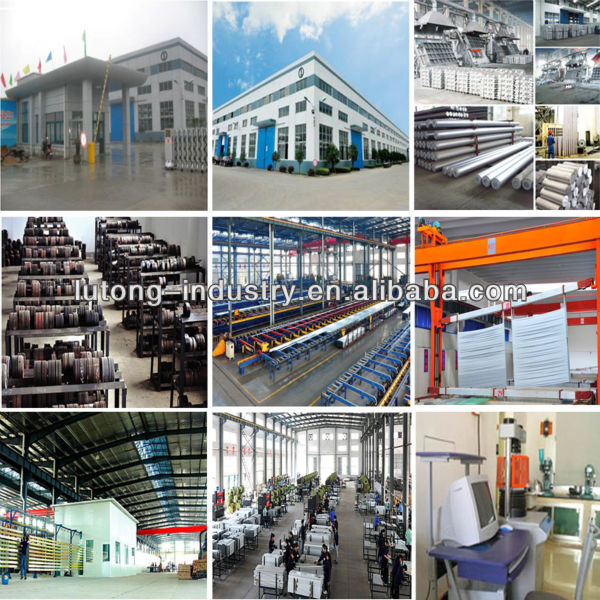

5.Factory show

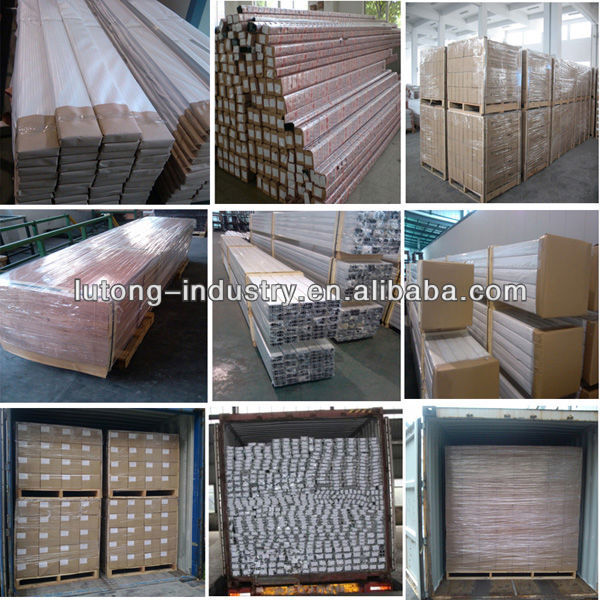

6.Packages and Loading

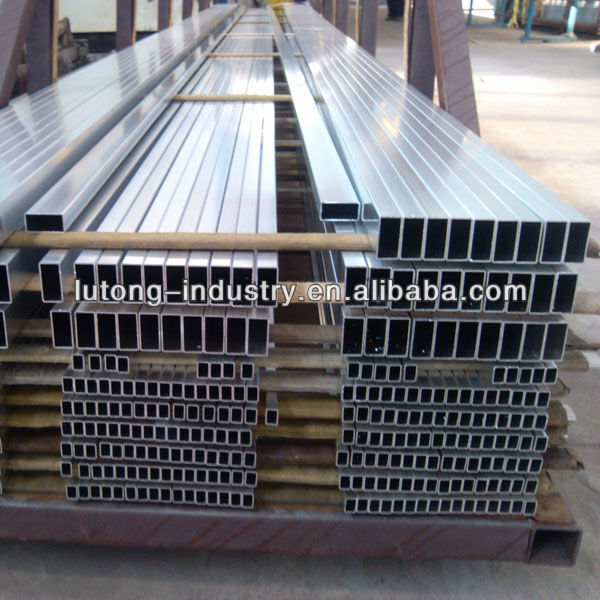

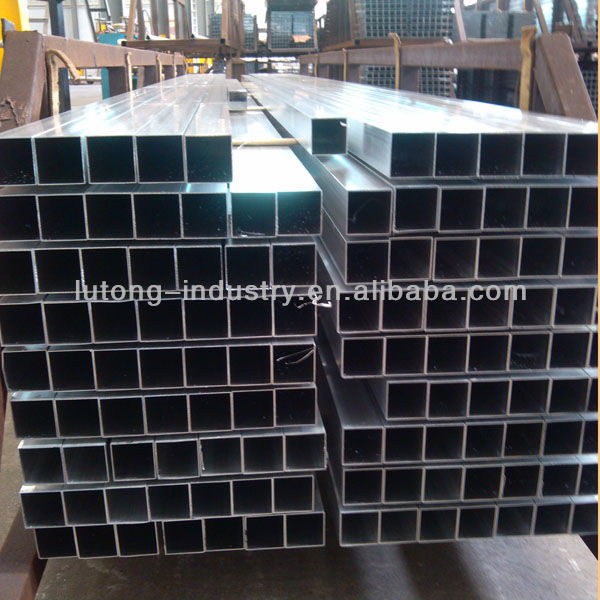

7.Standard tubing
