Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Grade: 6000 Series
  • Temper: T3-T8
  • Application: Decorations
  • Shape: Square
  • Alloy Or Not: Is Alloy
  • Model Number: ST
  • Brand Name: Jia Duoli
  • Specification: as customers requirement
  • color: silver,black,green etc
  • Surface Treatment: anodized,power coating etc
  • Fabrication: cutting,punching,drilling ,deburring,clearing etc
  • Certificate: ISO9001:2008; ISO14001:2004; SGS.
  • Name: PV solar panel aluminum extrusion frame with pretty material

Packaging & Delivery

Packaging Details EP Film, crate box, wooden pallet, or plywood case. Normally, 12 tons for a 20GP; 24 tons for a 40GP

 Favourable price with highest quality

 OEM&OGM is also welcomed

Product Description

A).Features

(1) 30*25mm suitable for solar modules of 30-120w

(2) 50*35mm suitable for solar modules of 160-220w

(3) 35*35mm suitable for solar modules of 80-180w

(4).Many more other sizes such as: 25*35,30*35,46*40,50*35 etc, all the sizes according to customer's requierments.



B)Two types

1) 90-angle
2) 45-angle



Common specifications:

1956*992*50mm

1650*992*45mm

1640*992*45mm

1580*808*40mm

1576*808*40mm

1482*670*40mm

1200*545*35mm

754*669*30mm

824*545*30mm

620*286*30mm



StandardGB/75237-2004,Q/320281/PDWD-2008

CertificationISO9001

Specifications: According to your design drawings and samples



Quality-assured products, fully accredited by ISO:9001:2008 and "National Inspection-free produt"



Most of Aluminium frames of us have been exported to North America, England,France,Spain,Korea, Japan.,and got good reportfrom our home and oversea clients





Technical Data

 1)Chemical composition

Alloy   Si   Fe    Cu  Mn    Mg      Cr  Zn  Ti impurity  Al
6063  0.2  0.35    0.1 0.10.45-0.9     0.1  0.1 0.1  0.15Rest
6061 0.4-0.8  0.70.15-0.4 0.150.8-1.20.04-0.35 0.250.15  0.15Rest
6060 0.3-0.60.1-0.3    0.1 0.10.35-0.6       - 0.15 0.1  0.15Rest
6005 0.6-0.9  0.35    0.1 0.10.4-0.6     0.1  0.1 0.1  0.15Rest

2)Mechanical property

     Alloy  Temper     Tensile strength    Yield strength   Elongation
     6063      T5         ≥160Mpa       ≥110Mpa      ≥8%
      T6         ≥205Mpa       ≥180Mpa      ≥8%
     6061      T6         ≥265Mpa       ≥245Mpa      ≥8%

3)Anodized

   Grade

                   Anodizing thicknessHole scaling quality of oxide layer
  Average  thickness  Local  thicknessP.Cr erosion weight less method
   AA10      ≥10um     ≥8um

          ≤30mg/d m²

   AA15      ≥15um     ≥12um

4)Powder coating

Coating thicknessCoating impress rigidityAdhesive force of coating layer
40-120mmIndentation hardness>80              0 Grade







Packaging & Shipping

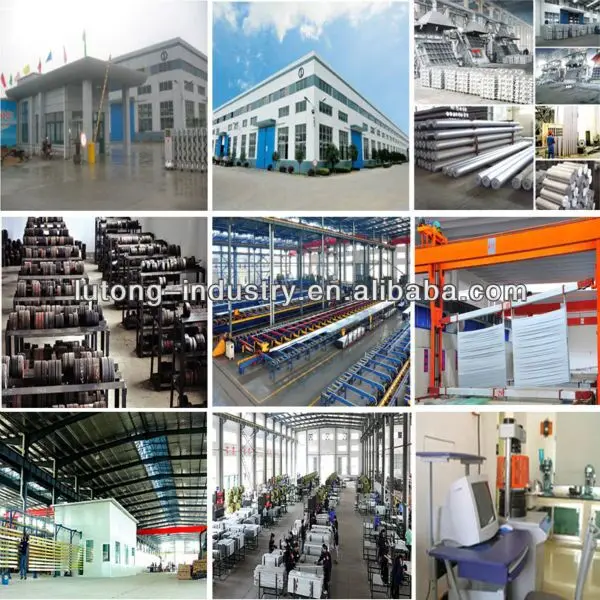

Company Information
